DJI Air 3

Takeoff Weight

720 g

Dimensions

Folded (without propellers): 207×100.5×91.1 mm (L×W×H)
Unfolded (without propellers): 258.8×326×105.8 mm (L×W×H)

Max Ascent Speed

10 m/s

Max Descent Speed

10 m/s

Max Horizontal Speed (at sea level, no wind)

21 m/s

19 m/s in EU regions.

Max Takeoff Altitude

6000 m

Max Flight Time

46 minutes

Measured by DJI Air 3 flying at a constant speed of 28.8 kph in a windless environment at sea level, with APAS off, AirSense off, camera parameters set to 1080p/24fps, video mode off, and from 100% battery level until 0%. Data is for reference only. Always pay attention to reminders in the app during your flight.

Max Hovering Time

42 minutes

Measured by DJI Air 3 hovering in a windless environment at sea level, with APAS off, AirSense off, camera parameters set to 1080p/24fps, video mode off, and from 100% battery level until 0%. Data is for reference only. Always pay attention to reminders in the app during your flight.

Max Flight Distance

32 km

Max Wind Speed Resistance

12 m/s

Max Pitch Angle

35°

Operating Temperature

-10° to 40° C (14° to 104° F)

Global Navigation Satellite System

GPS + Galileo + BeiDou

Hovering Accuracy Range

Vertical:
±0.1 m (with vision positioning)
±0.5 m (with GNSS positioning)

Horizontal:
±0.3 m (with vision positioning)
±0.5 m (with high-precision positioning system)

Internal Storage

8 GB

Class

C1 (EU)

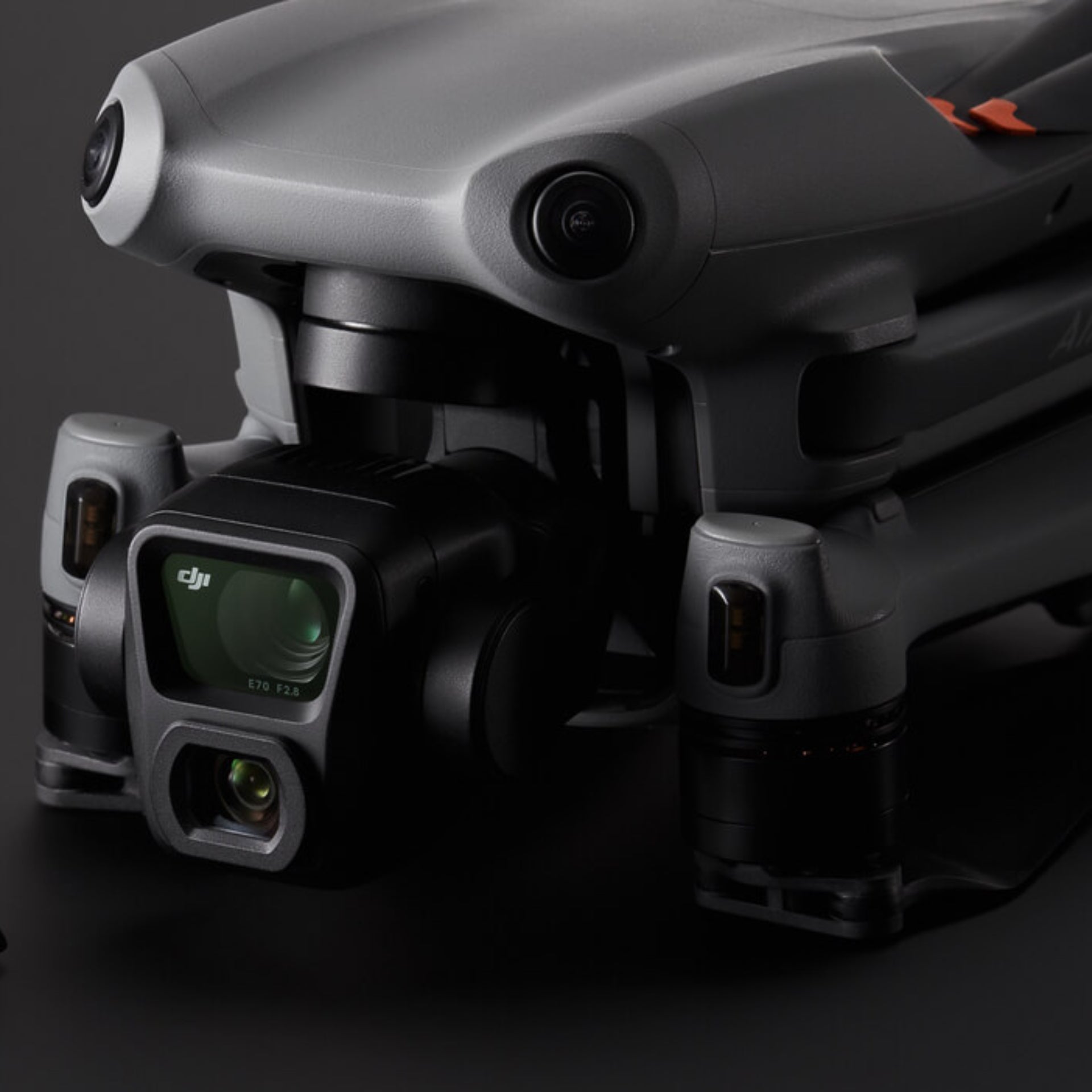

Image Sensor

Wide-Angle Camera: 1/1.3-inch CMOS, Effective Pixels: 48 MP
Medium Tele Camera: 1/1.3-inch CMOS, Effective Pixels: 48 MP

Lens

Wide-Angle Camera
FOV: 82°
Format Equivalent: 24 mm
Aperture: f/1.7
Focus: 1 m to ∞

Medium Tele Camera
FOV: 35°
Format Equivalent: 70 mm
Aperture: f/2.8
Focus: 3 m to ∞

ISO Range

Video
Normal and Slow Motion:
100-6400 (Normal)
100-1600 (D-Log M)
100-1600 (HLG)
Night:
100-12800 (Normal)

100-6400 (12 MP)
100-3200 (48 MP)

Shutter Speed

Wide-Angle Camera
12MP Photo: 1/16000-2 s (2.5-8 s for simulated long exposure)
48MP Photo: 1/8000-2 s

Medium Tele Camera
12MP Photo: 1/16000-2 s (2.5-8 s for simulated long exposure)
48MP Photo: 1/8000-2 s

Max Image Size

Wide-Angle Camera: 8064×6048
Medium Tele Camera: 8064×6048

Still Photography Modes

Wide-Angle Camera
Single Shot: 12 MP and 48 MP
Burst Shooting: 12 MP, 3/5/7 frames; 48 MP, 3/5 frames
Automatic Exposure Bracketing (AEB): 12 MP, 3/5 frames; 48 MP, 3/5 frames at 0.7 EV step
Timed: 12 MP, 2/3/5/7/10/15/20/30/60 s; 48 MP, 5/7/10/15/20/30/60 s

Medium Tele Camera
Single Shot: 12 MP and 48 MP
Burst Shooting: 12 MP, 3/5/7 frames; 48 MP, 3/5 frames
Automatic Exposure Bracketing (AEB): 12 MP, 3/5 frames; 48 MP, 3/5 frames at 0.7 EV step
Timed: 12 MP, 2/3/5/7/10/15/20/30/60 s; 48 MP, 5/7/10/15/20/30/60 s

Photo Format

JPEG/DNG (RAW)

Video Resolution

Wide-Angle Camera:
H.264/H.265
4K: 3840×2160@24/25/30/48/50/60/100*fps
FHD: 1920×1080@24/25/30/48/50/60/100*/200*fps
2.7K Vertical Shooting: 1512×2688@24/25/30/48/50/60fps
FHD Vertical Shooting: 1080×1920@24/25/30/48/50/60fps

Medium Tele Camera:
H.264/H.265
4K: 3840×2160@24/25/30/48/50/60/100*fps
FHD: 1920×1080@24/25/30/48/50/60/100*/200*fps
2.7K Vertical Shooting: 1512×2688@24/25/30/48/50/60fps
FHD Vertical Shooting: 1080×1920@24/25/30/48/50/60fps

* Recording frame rates. The corresponding video plays as slow-motion video. 4K/100fps only supports H.265.

Video Format

MP4 (MPEG-4 AVC/H.264, HEVC/H.265)

Max Video Bitrate

H.264/H.265: 150 Mbps

Supported File System

exFAT

Color Mode and Sampling Method

Wide-Angle Camera
Normal: 8-bit 4:2:0 (H.264/H.265)
HLG/D-Log M: 10-bit 4:2:0 (H.265)

Medium Tele Camera
Normal: 8-bit 4:2:0 (H.264/H.265)
HLG/D-Log M: 10-bit 4:2:0 (H.265)

Digital Zoom

Wide-Angle Camera: 1-3x
Medium Tele Camera: 3-9x

Stabilization

3-axis mechanical gimbal (tilt, roll, pan)

Mechanical Range

Tilt: -135° to 70°
Roll: -50° to 50°
Pan: -27° to 27°

Controllable Range

Tilt: -90° to 60°
Pan: -5° to 5°

Max Control Speed (tilt)

100°/s

Angular Vibration Range

±0.0037°

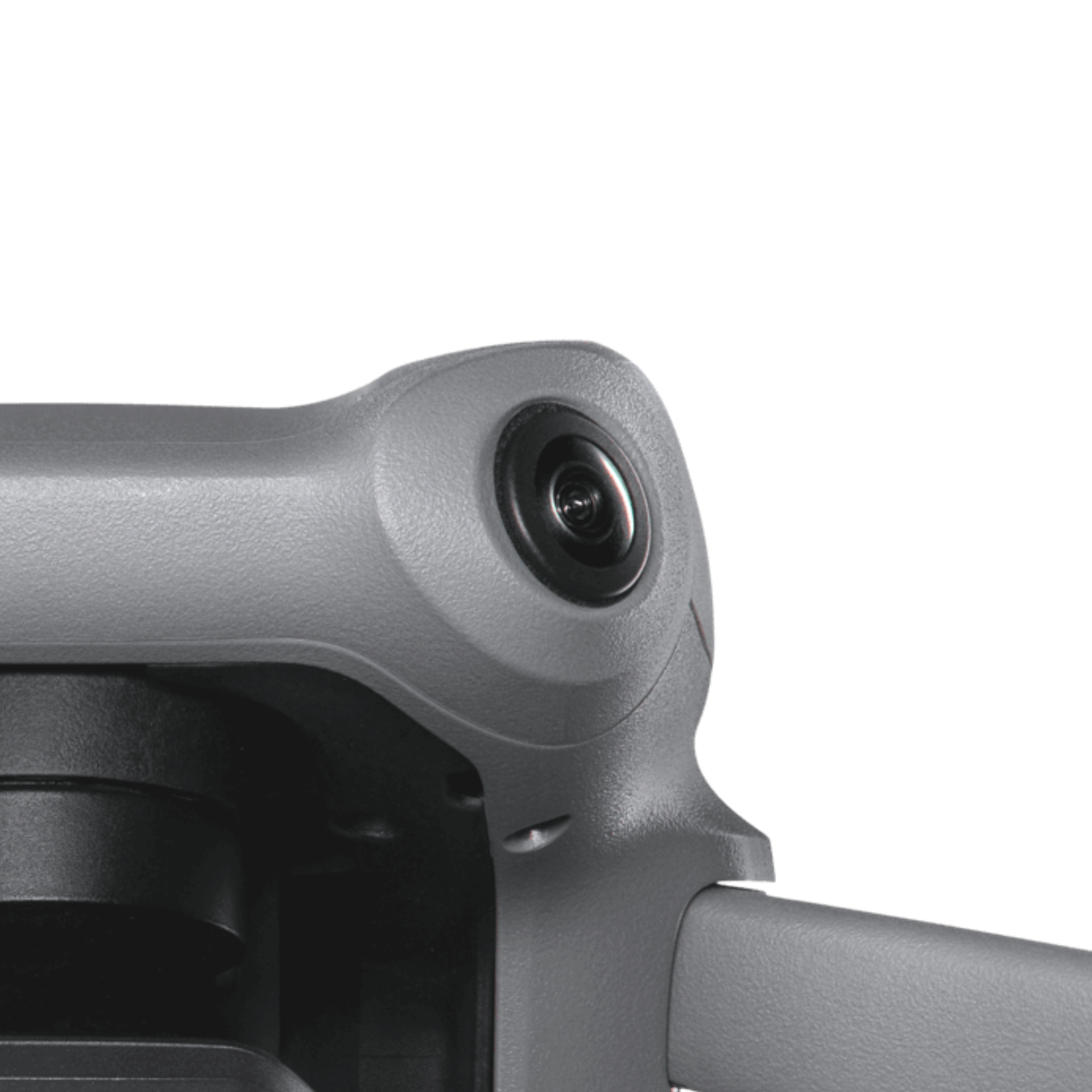

Sensing Type

Omnidirectional binocular vision system, supplemented with an infrared sensor at the bottom of the aircraft

Forward

Measurement Range: 0.5-18 m
Detection Range: 0.5-200 m
Effective Sensing Speed: Flight Speed ≤ 15 m/s
FOV: Horizontal 90°, Vertical 72°

Backward

Measurement Range: 0.5-18 m
Effective Sensing Speed: Flight Speed ≤ 14 m/s
FOV: Horizontal 90°, Vertical 72°

Lateral

Measurement Range: 0.5-30 m
Effective Sensing Speed: Flight Speed ≤ 14 m/s
FOV: Horizontal 90°, Vertical 72°

Upward

Measurement Range: 0.5-18 m
Effective Sensing Speed: Flight Speed ≤ 6 m/s
FOV: Front and Back 72°, Left and Right 90°

Downward

Measurement Range: 0.3-14 m
Effective Sensing Speed: Flight Speed ≤ 6 m/s
FOV: Front and Back 106°, Left and Right 90°

Operating Environment

Forward, Backward, Left, Right, and Upward:
Surfaces with discernible patterns and adequate lighting (lux > 15)
Downward:
Surfaces with discernible patterns, diffuse reflectivity > 20% (e.g. walls, trees, people), and adequate lighting (lux > 15)

3D Infrared Sensor

Measurement Range: 0.1-8 m (reflectivity > 10%)
FOV: Front and Back 60°, Left and Right 60°

Video Transmission System

O4

Live View Quality

Remote Controller:
1080p/30fps, 1080p/60fps

Operating Frequency

2.4000-2.4835 GHz
5.170-5.250 GHz
5.725-5.850 GHz

5.170-5.250 GHz can be used only in countries and regions where permitted by local laws and regulations.

Transmitter Power (EIRP)

2.4 GHz:
< 33 dBm (FCC)
< 20 dBm (CE/SRRC/MIC)

5.1 GHz:
< 23 dBm (CE)

5.8 GHz:
< 33 dBm (FCC)
< 30 dBm (SRRC)
< 14 dBm (CE)

Max Transmission Distance (unobstructed, free of interference)

FCC: 20 km
CE: 10 km
SRRC: 10 km
MIC: 10 km

Measured in an unobstructed outdoor environment free of interference. The above data shows the farthest communication range for one-way, non-return flights under each standard. Always pay attention to RTH reminders in the app during your flight.

Max Transmission Distance (unobstructed, with interference)

Strong Interference: urban landscape, approx. 1.5-4 km
Medium Interference: suburban landscape, approx. 4-10 km
Low Interference: suburb/seaside, approx. 10-20 km

Data tested under FCC standard in unobstructed environments with typical interference. Used for reference purposes only and provides no guarantee for actual transmission distance.

Max Transmission Distance (obstructed, with interference)

Low Interference and Obstructed by Buildings: approx. 0-0.5 km
Low Interference and Obstructed by Trees: approx. 0.5-3 km

Data tested under FCC standard in obstructed environments with typical low interference. Used for reference purposes only and provides no guarantee for actual transmission distance.

Max Download Speed

O4:
10 MB/s (with DJI RC-N2 Remote Controller)
10 MB/s (with DJI RC 2)
Wi-Fi 5: 30 MB/s*

* Measured in a laboratory environment with little interference in countries/regions that support both 2.4 GHz and 5.8 GHz. Download speeds may vary depending on the actual conditions.

Lowest Latency

Aircraft + Remote Controller: approx. 120 ms

Depending on the actual environment and mobile device.

Antenna

6 antennas, 2T4R

Protocol

802.11 a/b/g/n/ac

Operating Frequency

2.400-2.4835 GHz
5.725-5.850 GHz

Transmitter Power (EIRP)

2.4 GHz:
< 20 dBm (FCC/CE/SRRC/MIC)

5.8 GHz:
< 20 dBm (FCC/SRRC)
< 14 dBm (CE)

Protocol

Bluetooth 5.2

Operating Frequency

2.400-2.4835 GHz

Transmitter Power (EIRP)

< 10 dBm

Capacity

4241 mAh

Weight

Approx. 267 g

Nominal Voltage

14.76 V

Max Charging Voltage

17 V

Type

Li-ion 4S

Energy

62.6 Wh

Charging Temperature

5° to 40° C (41° to 104° F)

Charging Time

Approx. 80 minutes (with DJI 65W Portable Charger)
Approx. 60 minutes (with DJI 100W USB-C Power Adapter and Battery Charging Hub)

Input

USB-C: 5-20 V, max 5 A

Output (power accumulation)

Battery Port: 12-17 V, 3.5 A

Output (charging)

Battery Port: 12-17 V, max 5 A

Output (USB)

USB-C:
5 V, 3 A
9 V, 5 A
12 V, 5 A
15 V, 5 A
20 V, 4.1 A

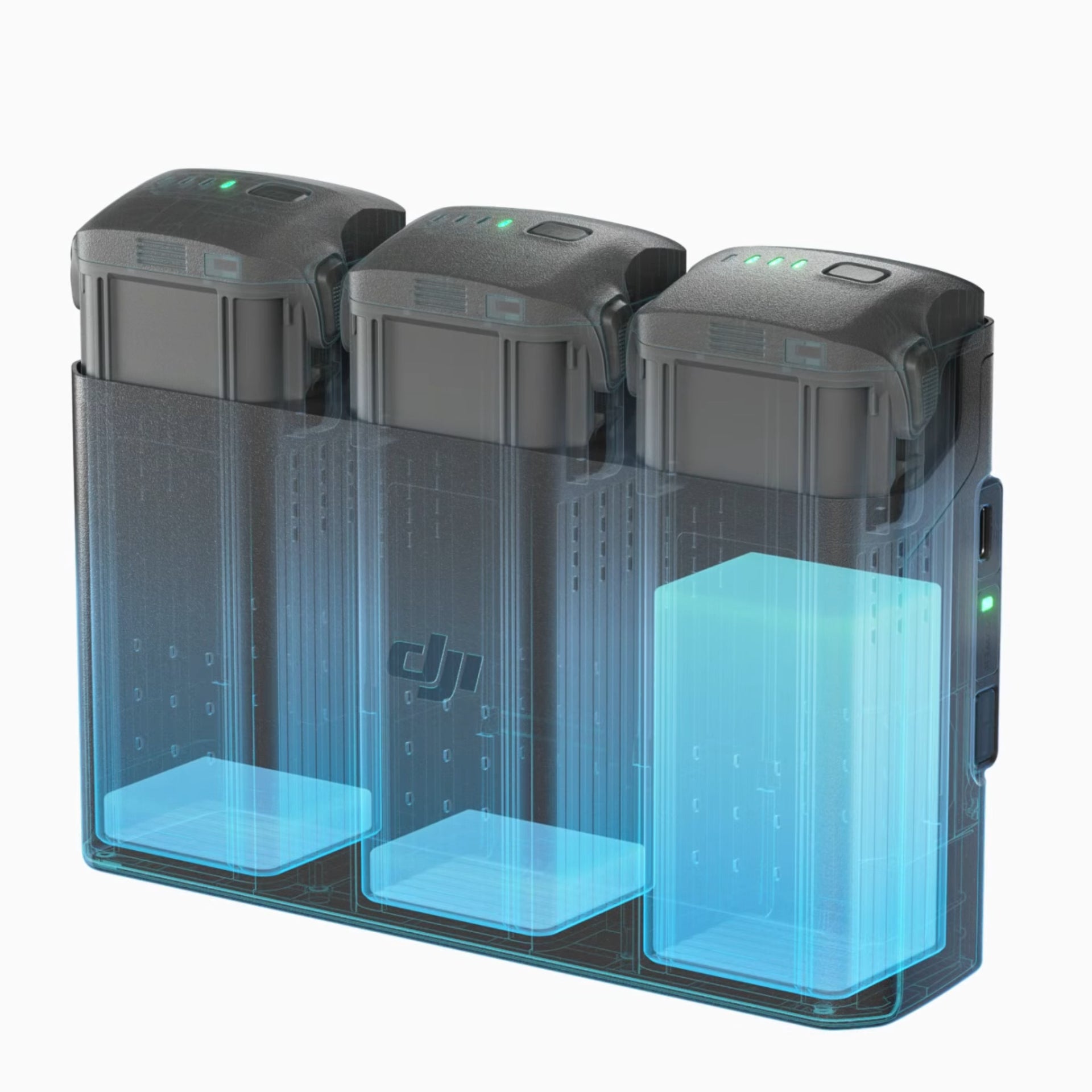

Charging Type

Three batteries charged in sequence.

Compatibility

DJI Air 3 Intelligent Flight Battery

Recommended microSD Cards

SanDisk Extreme PRO 32GB V30 U3 A1 microSDHC
Lexar 1066x 64GB V30 U3 A2 microSDXC
Lexar 1066x 128GB V30 U3 A2 microSDXC
Lexar 1066x 256GB V30 U3 A2 microSDXC
Lexar 1066x 512GB V30 U3 A2 microSDXC
Kingston Canvas GO! Plus 64GB V30 U3 A2 microSDXC
Kingston Canvas GO! Plus 128GB V30 U3 A2 microSDXC
Kingston Canvas React Plus 64GB V90 U3 A1 microSDXC
Kingston Canvas React Plus 128GB V90 U3 A1 microSDXC
Kingston Canvas React Plus 256GB V90 U3 A1 microSDXC
Samsung EVO Plus 512GB V30 U3 A2 microSDXC

Model

RC151

Max Operating Time

Without charging any mobile device: 6 hours
When charging a mobile device: 3.5 hours

Max Supported Mobile Device Size

180×86×10 mm (L×W×H)

Operating Temperature

-10° to 40° C (14° to 104° F)

Charging Temperature

5° to 40° C (41° to 104° F)

Charging Time

2.5 hours

Charging Type

It is recommended to use a 5V/2A charger.

Battery Capacity

18.72 Wh (3.6 V, 2600 mAh × 2)

Type

18650 Li-ion

Dimensions

104.22×149.95×45.25 mm (L×W×H)

Weight

375 g

Supported Mobile Device Port Type

Lightning, USB-C, Micro-USB

Using a mobile device with Micro-USB port requires the DJI RC-N1 RC Cable (Standard Micro USB connector), which is sold separately.

Video Transmission Operating Frequency

2.4000-2.4835 GHz
5.170-5.250 GHz
5.725-5.850 GHz

Video Transmission Transmitter Power (EIRP)

2.4 GHz:
< 33 dBm (FCC)
< 20 dBm (CE/SRRC/MIC)

5.1 GHz:
< 23 dBm (CE)

5.8 GHz:
< 33 dBm (FCC)
< 14 dBm (CE)
< 30 dBm (SRRC)

* Please check and strictly abide by local laws and regulations before flying.

** All data was tested using a production model DJI Air 3 in a controlled environment. Actual experience may vary depending on the environment, usage, and firmware version.

*** All videos and images on this page were shot in strict compliance with relevant local laws and regulations.

**** Before use, DJI Air 3 must be activated via the DJI Fly app.

***** DJI Air 3 is C1 certified by the European Union Aviation Safety Agency (EASA).

****** It is recommended to use the ActiveTrack 360° feature in open environments. Refer to the user manual for unsupported scenarios that may interrupt recording. In complex environments with many obstacles, exercise caution when using Auto mode to ensure flight safety and personal safety.

1. Measured by DJI Air 3 flying at a constant speed of 28.8 kph in a windless environment at sea level, with APAS off, AirSense off, camera parameters set to 1080p/24fps, video mode off, and from 100% battery level until 0%. Data is for reference only. Always pay attention to reminders in the app during flight.

2. DO NOT use the aircraft in severe weather conditions, including heavy wind exceeding 12 m/s, snow, rain, fog, hail, or lightning. DO NOT fly the aircraft 6000 m (19,685 ft.) or higher above sea level. DO NOT fly the aircraft in environments where the temperature is below -10° C (14° F) or above 40° C (104° F). DO NOT take off from moving objects such as cars or boats. DO NOT fly close to reflective surfaces such as water or snow. Otherwise, the vision system may not work correctly. When the GNSS signal is weak, fly the aircraft in environments with good lighting and visibility. Low ambient light may cause the vision system to function abnormally. DO NOT fly near areas with magnetic or radio interference. Familiar magnetic or radio interference sources include Wi-Fi hotspots, routers, Bluetooth devices, high-voltage lines, large-scale power transmission stations, radar stations, mobile base stations, and broadcasting towers. Avoid sand entering the aircraft when taking off in desert or beach areas. Fly the aircraft in open areas away from crowds. Buildings, mountains, and trees may block the GNSS signal and affect the onboard compass.

3. The wide-angle camera and 3x medium tele camera have different apertures.

4. Recording frame rates. The corresponding video plays as slow-motion video.

5. Compared with DJI Air 2S.

6. DO NOT connect the charger, connect external devices, or insert/remove any batteries when using the power accumulation function.

7. The obstacle avoidance action should be set to Bypass in the app.

8. Measured in an outdoor, open environment, without interference, and with FCC compliance. The above data shows the farthest communication range for one-way, non-return flights. Pay attention to reminders in the app during your flight.

9. Only available when ambient light meets the working conditions of the vision systems. Always pay attention to the surroundings and app warnings. For specific usage conditions, please refer to the product user manual.

10. The 3x medium tele camera does not support the Asteroid QuickShots.

11. DJI Air 3 saves photos in HDR DNG format when the aircraft is stationary and the exposure parameters are automatically set in Auto or Pro mode.

12. Sold separately.
